Design

USB 3.0 Eagle series

Operating temperature: 0 to +50°C
Lens mount type: C - mount
Weight (without lens, tripod adapter and lens cap): 57 g (2.0 oz)
Dimensions (L × W × D):
40.1 × 36 × 36 mm (1.58 × 1.42 × 1.42 inches)
Camera housing material: Aircraft grade aluminum

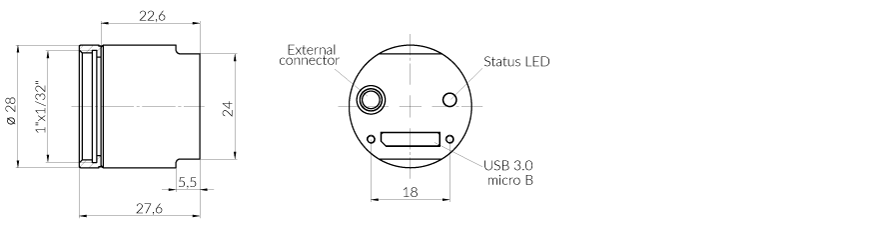

USB 3.0 Hummingbird series

Operating temperature: 0 to +50°C
Lens mount type: C/CS - mount
Weight (CS-mount, without lens, tripod adapter and lens cap): 20 g (0.71 oz)
Dimensions (L × D):
CS-mount - 22.6 × 28 mm (0.89 × 1.1 inches)
C-mount - 27.6 × 28 mm (1.09 × 1.1 inches)
Camera housing material: Aircraft grade aluminum

External connector pinout

USB 2.0 camera series (type l)

Operating temperature: 0 to +60°C
Lens mount type: C-mount
Weight (without lens): 108 g
Dimensions (W × L × H): 54.2 × 54.2 × 32.6 mm
Camera housing material: Aluminum

External connector pinout

1 External trigger input (positive)
2 Frame start pulse output
3 Not used
4 External trigger input (negative)
5 Synchronous shutter start output
6 Common (GND)

Note: This is the default external connector pinout, which can be reprogrammed by customers to meet their specific requirements.



USB 2.0 camera series (type ll)

Operating temperature: 0 to +60°C
Lens mount type: C/CS - mount
Weight (without lens): 55 g
Dimensions (L × D): 50.8 × 30.2 mm
Camera housing material: Aluminum
